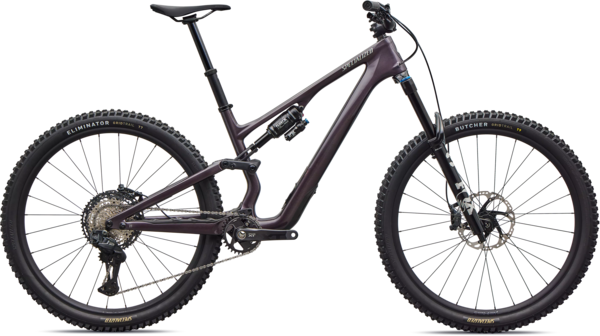

Specialized Stumpjumper 15 EVO Expert Di2

Specialized Stumpjumper 15 EVO Expert Di2
  • Color: Gloss Nebula Metallic / Dolomite Metallic
  • Color: Gloss Pistachio / Dark Moss Green
$6,200.00
Color:
Size: Select size
Wheel Size: Select wheel size
Please select options Unavailable
Order now and pick up in-store for free

Details

The all-new Stumpjumper 15 EVO obliterates every trade-off in the trail game. It’s the ‘Bike of the Year’ winning Stumpy 15 you know, turned up to 11—with a longer-travel 160mm FOX fork, external reservoir FOX FLOAT X shock, and a slacker headtube for next-level capability. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. A heaping helping of personalization to make it perfect for the only rider who matters—you? Check, check, check.

Wheel size:
Sizes S1 - S2: 29-inch front / 27-inch rear
Sizes S3 - S6: 29-inch

Frame SizeS1S2S3S4S5S6
Crank Length (mm/in) 165 / 6.50 165 / 6.50 165 / 6.50 170 / 6.69 170 / 6.69 170 / 6.69
Handlebar Width (mm/in) 780 / 30.71 780 / 30.71 800 / 31.50 800 / 31.50 800 / 31.50 800 / 31.50
Stem Length (mm/in) 40 / 1.57 40 / 1.57 40 / 1.57 40 / 1.57 40 / 1.57 40 / 1.57
Saddle Width (mm/in) 155 / 6.10 155 / 6.10 143 / 5.63 143 / 5.63 143 / 5.63 143 / 5.63
Seatpost Length (mm/in) 125 / 4.92 150 / 5.91 175 / 6.89 200 / 7.87 200 / 7.87 225 / 8.86
Stack (mm/in) 611 / 24.06 621 / 24.45 630 / 24.80 644 / 25.35 658 / 25.91 671 / 26.42
Reach (mm/in) 400 / 15.75 420 / 16.54 445 / 17.52 470 / 18.50 495 / 19.49 525 / 20.67
Head-Tube Length (mm/in) 95 / 3.74 100 / 3.94 110 / 4.33 125 / 4.92 140 / 5.51 155 / 6.10
Head-Tube Angle (degrees) 64° 64° 64° 64° 64° 64°
B-B Height (mm/in) 337 / 13.27 340 / 13.39 340 / 13.39 340 / 13.39 340 / 13.39 340 / 13.39
B-B Drop (mm/in) 38 / 1.50 35 / 1.38 35 / 1.38 35 / 1.38 35 / 1.38 35 / 1.38
Trail (mm/in) 133 / 5.24 134 / 5.28 134 / 5.28 134 / 5.28 134 / 5.28 134 / 5.28
Fork Length, Full (mm/in) 561 / 22.09 573 / 22.56 573 / 22.56 573 / 22.56 573 / 22.56 573 / 22.56
Fork Rake/Offset (mm/in) 44 / 1.73 44 / 1.73 44 / 1.73 44 / 1.73 44 / 1.73 44 / 1.73
Front-Center (mm/in) 724 / 28.50 755 / 29.72 785 / 30.91 816 / 32.13 848 / 33.39 884 / 34.80
Chain-Stay Length (mm/in) 430 / 16.93 432 / 17.01 435 / 17.13 435 / 17.13 445 / 17.52 445 / 17.52
Wheelbase (mm/in) 1153 / 45.39 1186 / 46.69 1217 / 47.91 1249 / 49.17 1290 / 50.79 1327 / 52.24
Top Tube Length, Horizontal (mm/in) 542 / 21.34 574 / 22.60 596 / 23.46 625 / 24.61 649 / 25.55 678 / 26.69
Bike Stand-Over Height (mm/in) 738 / 29.06 751 / 29.57 745 / 29.33 745 / 29.33 745 / 29.33 751 / 29.57
Seat-Tube Length (mm/in) 385 / 15.16 385 / 15.16 405 / 15.94 425 / 16.73 445 / 17.52 465 / 18.31
Seat-Tube Angle (degrees) 77.7° 76.5° 76.5° 76° 76° 76°
Saddle Height for Effective ST Angle (mm/in) 825 / 32.48 870 / 34.25 645 / 25.39 690 / 27.17 735 / 28.94 780 / 30.71
Max Seatpost Insertion (mm/in) 245 / 9.65 245 / 9.65 255 / 10.04 255 / 10.04 285 / 11.22 285 / 11.22
Min Seatpost Insertion (mm/in) 80 / 3.15 80 / 3.15 80 / 3.15 80 / 3.15 80 / 3.15 80 / 3.15

Specs

Frame FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
Fork FOX FLOAT 36 Performance Elite, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm Kabolt axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel
Rear Shock FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSC adjustment, LSR adjustment, 210x55mm
Wheels Front: Roval Traverse 29" Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370, 15x110mm, 28h, Sapim Force Spokes Rear: Roval Traverse Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370, 15x110mm, 28h, Sapim Force Spokes
Tires Front: Butcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4 Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
Bottom Bracket Shimano, BB-MT801, Threaded
Crankset Shimano XT, 55mm chainline, 32T, S1-S3: 165mm, S4-S6: 170mm
Shifters Shimano XT Di2
Rear Derailleur Shimano XT Di2, 12-speed
Cassette/Freewheel Shimano XT M8200, 12-speed, 10-51
Chain Shimano XT M8100, 12-speed w/ quick link
Brakes Shimano Deore XT brake, 4 piston, Metal pad w/fin
Handlebars Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise
Tape/Grips Deity Lockjaw Grips
Stem Alloy Trail Stem, 35mm bar bore
Seatpost PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S1: 125mm, S2: 150mm, S3: 175mm, S4-S5: 200mm, S6: 225mm
Saddle Bridge Comp, Hollow Cr-mo rails S1-S2:155mm, S3-S6:143mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gloss Nebula Metallic / Dolomite Metallic / S2 / 29-inch front / 27-inch rear 196625238574 93326-3002
Gloss Nebula Metallic / Dolomite Metallic / S4 / 29-inch 196625238581 93326-3004
Gloss Nebula Metallic / Dolomite Metallic / S6 / 29-inch 196625238598 93326-3006
Gloss Pistachio / Dark Moss Green / S3 / 29-inch 196625238567 93326-3103
Gloss Pistachio / Dark Moss Green / S4 / 29-inch 196625238666 93326-3104
